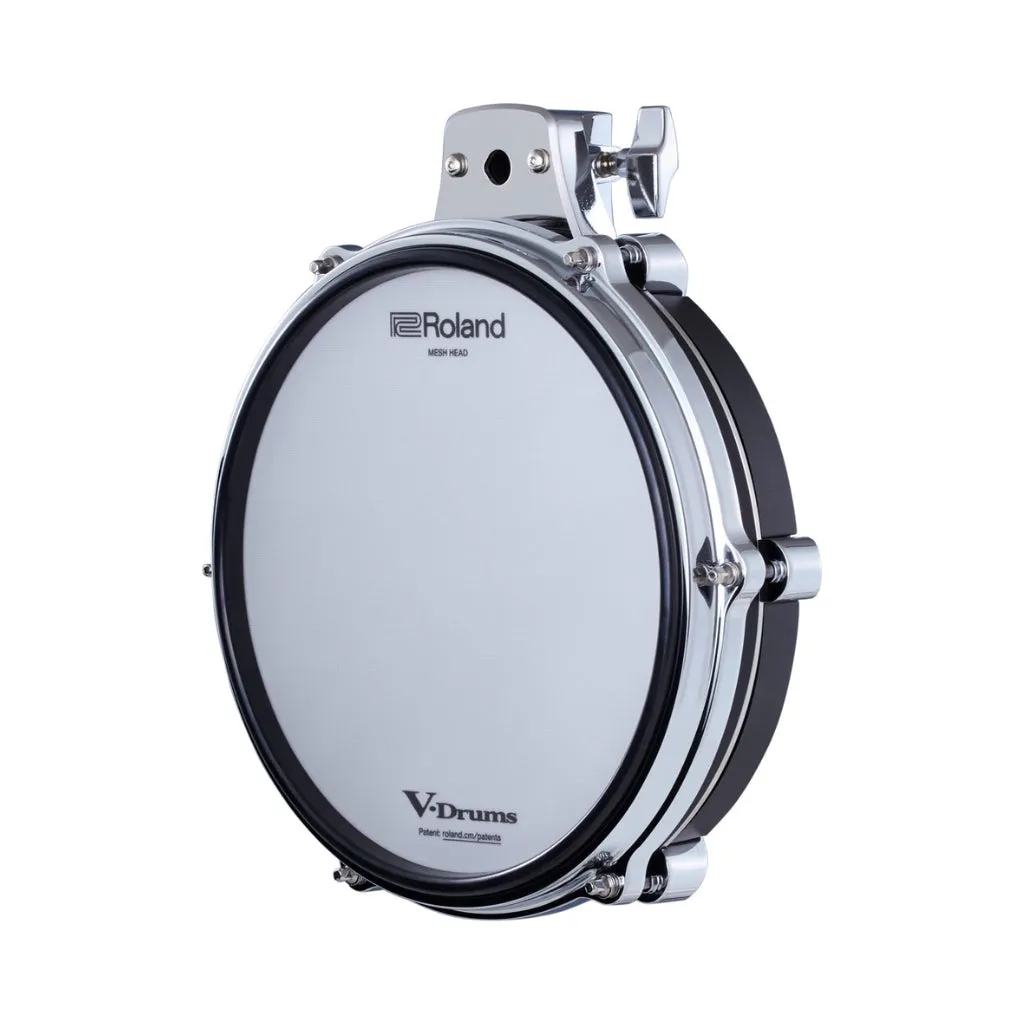

Advanced 10-Inch V-Pad with a Streamlined Profile and Newly Developed Sensors

The 10-inch PD-10X is included with our flagship TD716 kit and is compatible with select V-Drums products. Its elegant, streamlined design offers an acoustic-style hoop height and a shallow depth for easy adjustment within your setup. The high-resolution, multi-sensor system provides independent detection of rim and head hits, hot spot elimination, and positional sensing with the V71 and other modules that support this feature. And thanks to the new universal mount, you can use the PD-10X with most of the leading drum hardware brands.

Features

• Streamlined 10-inch V-Pad with the latest V-Drums sensing technology
• Elegant design with die-cast hoops, rim playing surface set inside of the hoop, and chrome parts
• Standard acoustic snare/tom hoop height
• New pad construction with multiple sensors that detect rim and head hits with ultra-accurate detail
• Precision quad sensor placement for hot spot elimination and positional sensing accuracy

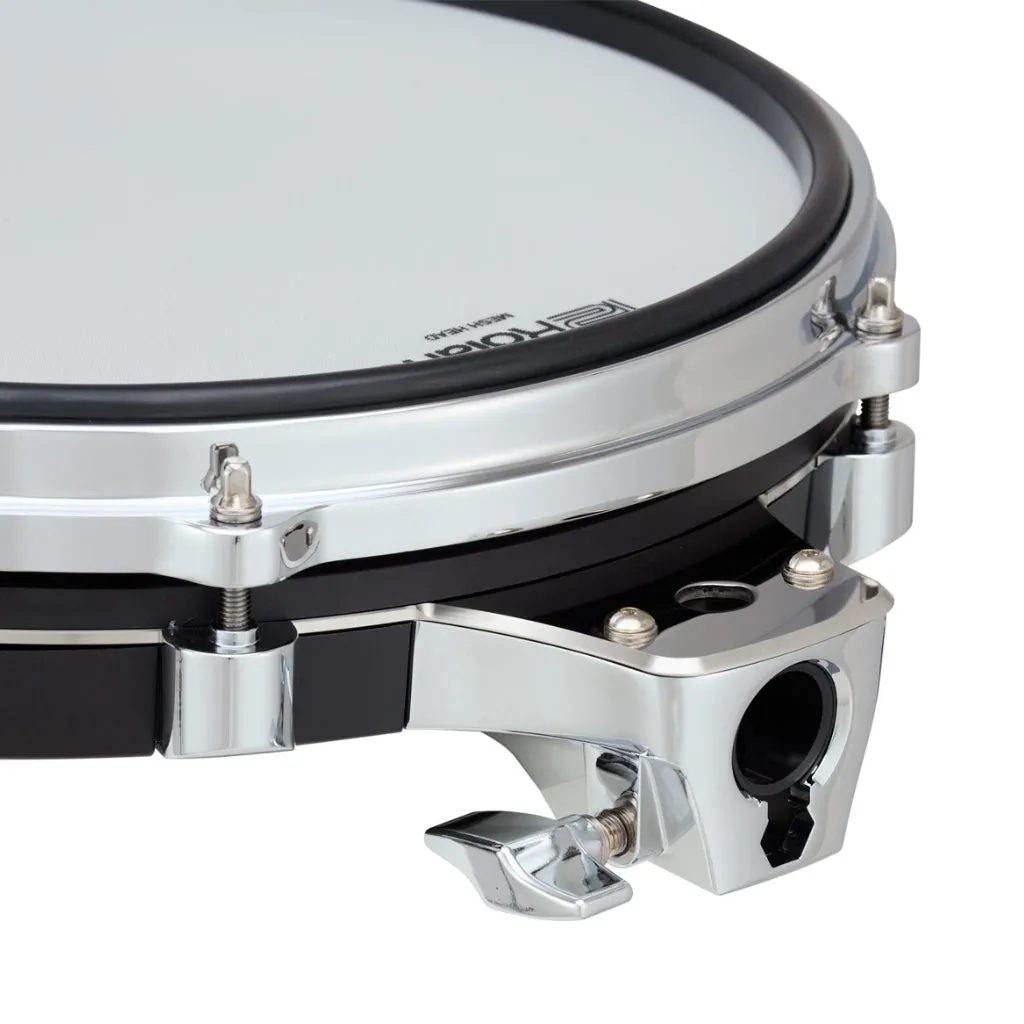

• Universal mount with wide hardware compatibility: Roland, DW, Pearl, Yamaha, and others

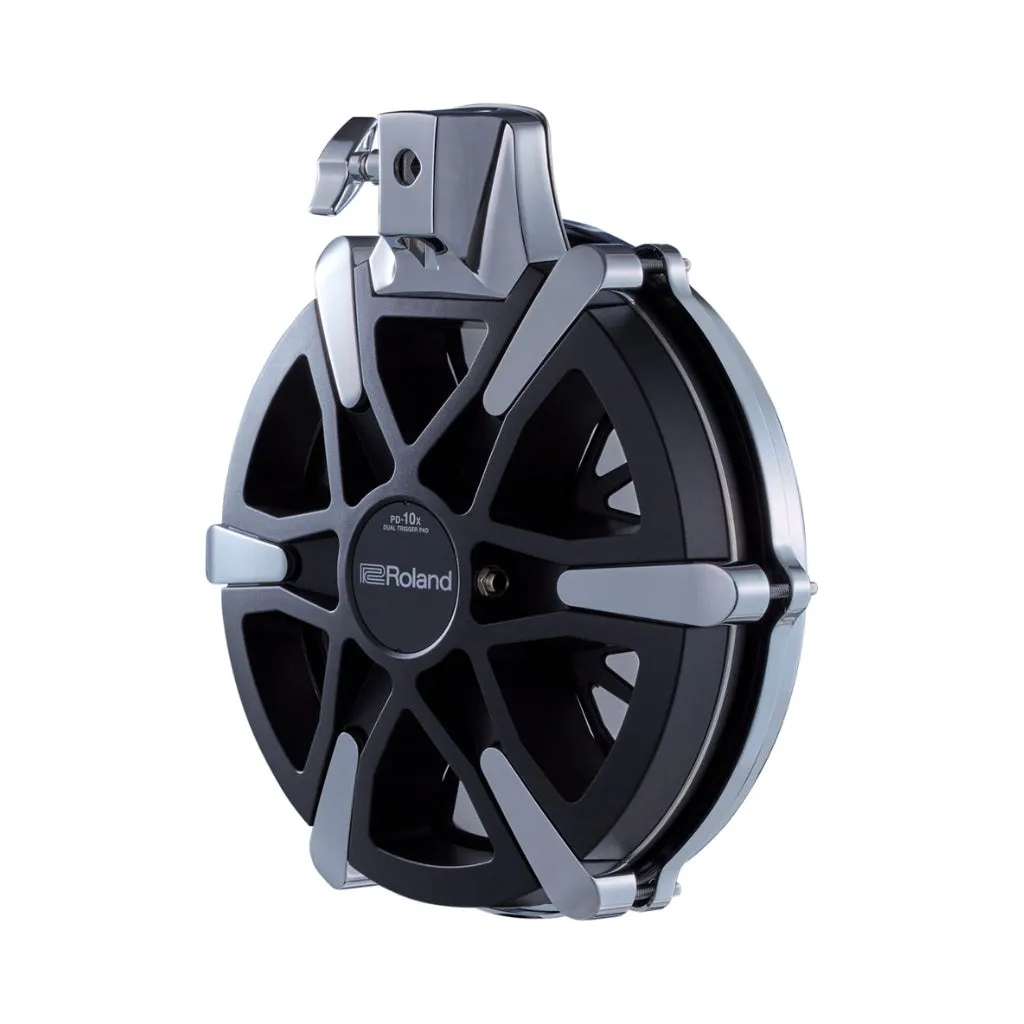

• Shallow design for setup flexibility
• 1/4-inch TRS trigger output
• Works with the V71, TD-50X, and TD-27 modules (full support, including positional sensing)
• Also works with the TD-17 (positional sensing not supported)
• Attractive black finish that matches the PD-12X V-Pad and KD-18-BK Kick Drum Pad

Specs

Pad size

• 10 inches

• Head shot (High resolution positional detection)
• Rim shot (Depth detection)

• Head Multi sensor
• Rim sensor

• 305 (W) x 320 (D) x 95 (H) mm
• 12-1/16 (W) x 12-5/8(D) x 3-3/4 (H) inches

• 2.75 kg
• 6 lbs 2 oz

• Diameter of mountable rods: 9.7--13.3 mm (7/16 to 9/16 inches)

• Diameter of mountable pipes: 22.2 mm (7/8 inches)

• Diameter of mountable rods (round type):10.8 mm (7/16 inches)
• Width of mountable rods (hexagonal type/width-across-flats): 9.5--10.0 mm (3/8 to 7/16 inches)
• Length of mountable rods: 60--120 mm (2-3/8 to 4-3/4 inches)

• Owner's Manual
• Leaflet "USING THE UNIT SAFELY"
• Knob bolt
• Connection Cable
• Drum Key

• Pad Mount (MDH series)
• Drum Stands (MDS series)
